PRODUCT INTRODUCTION

CHEVRON BELT

Chevron Belt

Pattern Types

PACKWOOD specializes in the design and manufacture of chevron conveyor belts, offering over 120 different patterns to meet the needs of various industries. Our chevron conveyor belts with different patterns are widely used in agricultural product harvesting and sorting, municipal and industrial waste treatment, environmental material recycling, and inclined sand and gravel conveying in quarries. We also accept custom-made patterns to meet specific customer needs. Here are some specifications and dimensions for different pattern heights and designs for your reference:

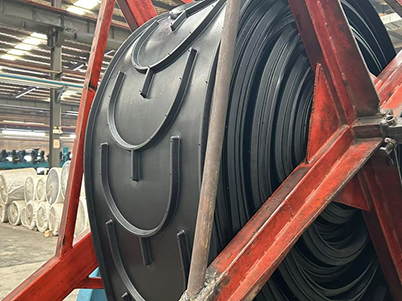

Pattern Type 1

Pattern Height

CH：25

Pattern Width

CW：370,450,470,550,570,670,750,770,1050

Pattern Pitch

CP：330

Belt Width

BW：500-1600mm

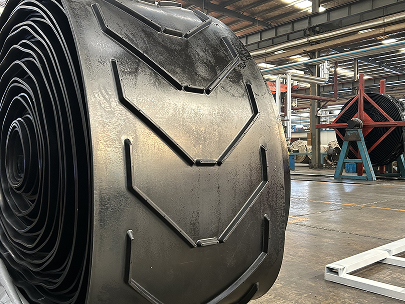

Pattern Type 1 Detail

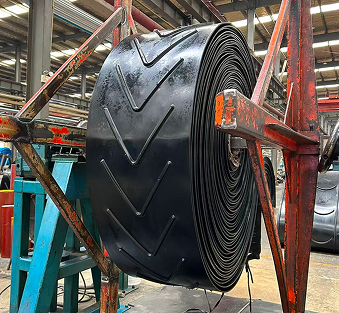

Pattern Type 2

Pattern Height

CH：15

Pattern Width

CW：330, 450

Pattern Pitch

CP：250, 300

Belt Width

BW：400-1000mm

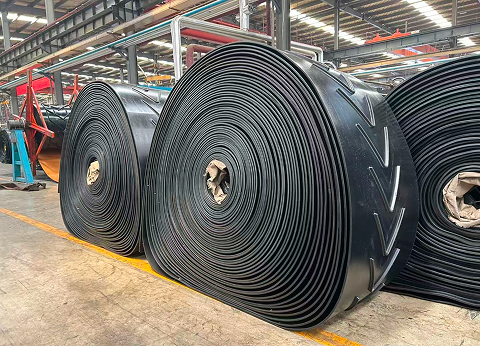

Pattern Type 2 Detail

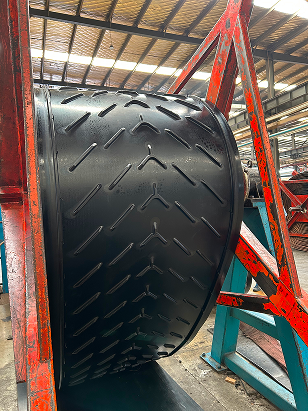

Pattern Type 3

Pattern Height

CH：15

Pattern Width

CW：880, 970, 1050, 1290

Pattern Pitch

CP：190

Belt Width

BW：1000-1450mm

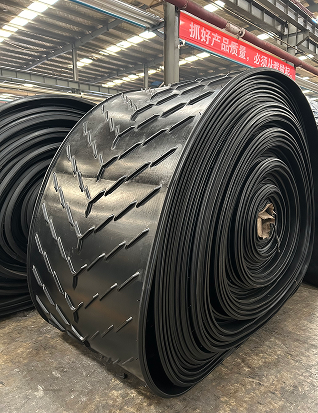

Pattern Type 3 Detail

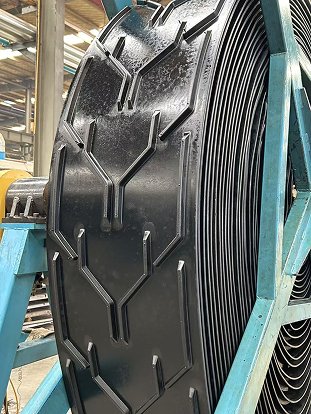

Pattern Type 4

Pattern Height

CH：17

Pattern Width

CW：440, 550, 630, 750, 950

Pattern Pitch

CP：330

Belt Width

BW：500-1400mm

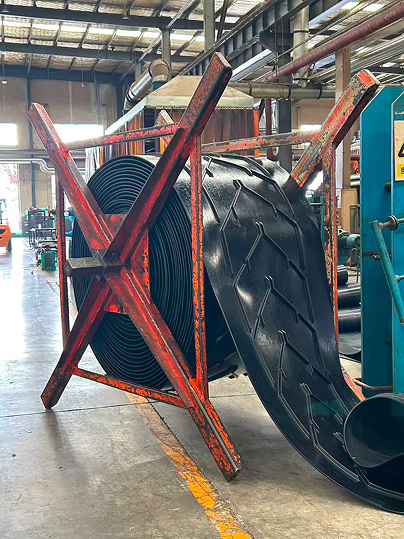

Pattern Type 4 Detail

Pattern Type 5

Pattern Height

CH：25

Pattern Width

CW：1180, 1350, 1370, 1400

Pattern Pitch

CP：330

Belt Width

BW：1200-1500mm

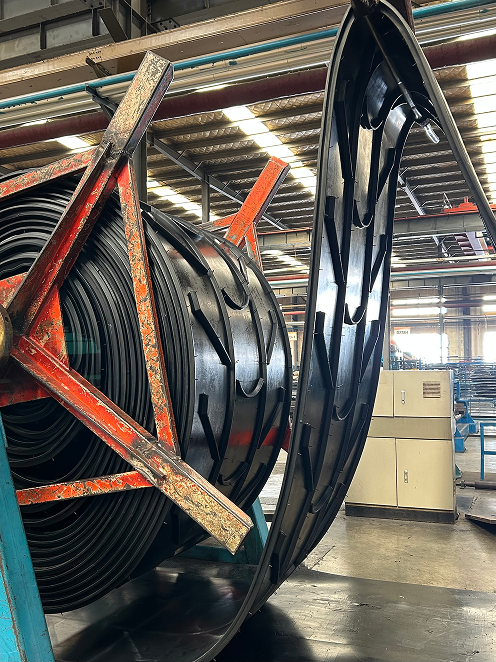

Pattern Type 5 Detail

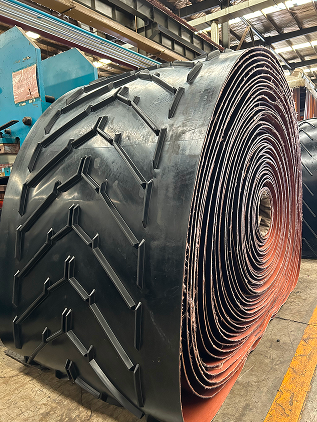

Pattern Type 7

Pattern Height

CH：25

Pattern Width

CW：540

Pattern Pitch

CP：250

Belt Width

BW：600-1000mm

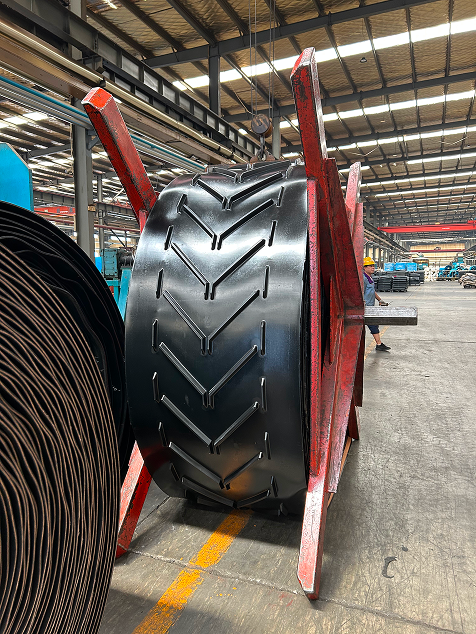

Pattern Type 7 Detail

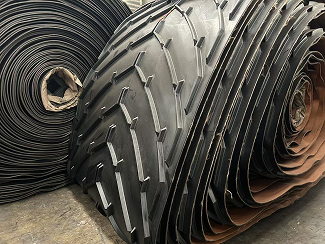

Pattern Type 8

Pattern Height

CH：25

Pattern Width

CW：1050, 1120

Pattern Pitch

CP：245, 250

Belt Width

BW：1100-1450mm

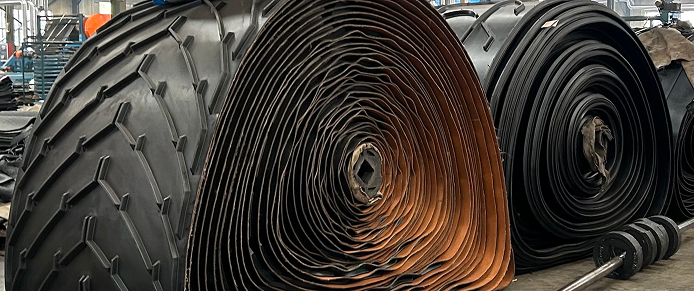

Pattern Type 8 Detail

Pattern Height

CH：25

Pattern Width

CW：490, 790, 990, 1090

Pattern Pitch

CP：330

Belt Width

BW：500-1400mm

Pattern Type 9

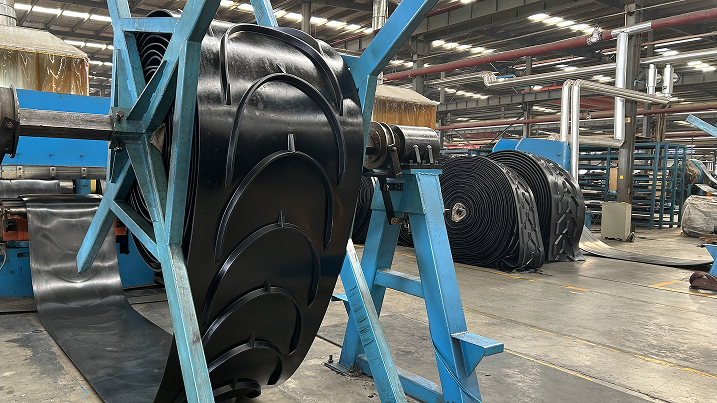

Pattern Type 9 Detail

Pattern Type 10

Pattern Height

CH：25

Pattern Width

CW：835

Pattern Pitch

CP：245

Belt Width

BW：1000-1400mm

Pattern Type 10 Detail

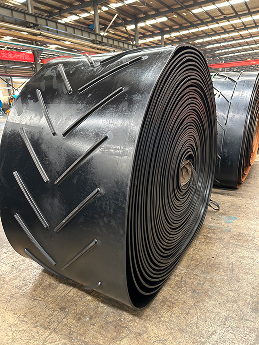

Pattern Type 11

Pattern Height

CH：15

Pattern Width

CW：320, 330, 375, 385, 420, 440, 450, 520, 590, 740

Pattern Pitch

CP：200, 220, 245, 250, 255

Belt Width

BW：400-1200mm

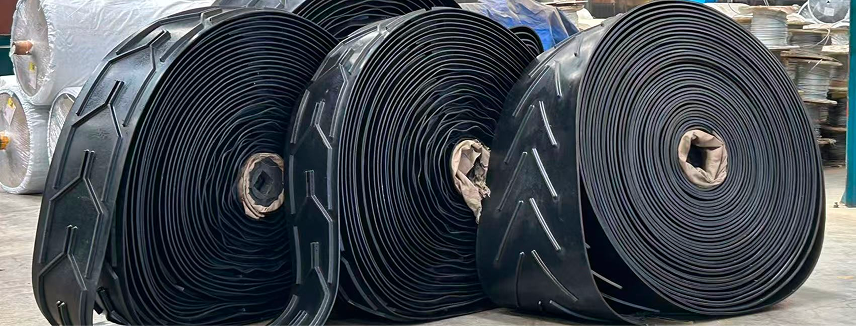

Pattern Type 11 Detail

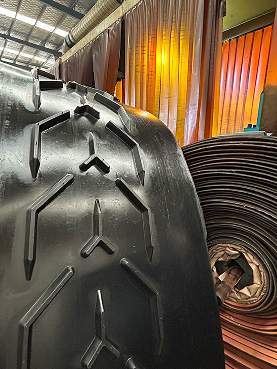

Pattern Type 12

Pattern Height

CH：25

Pattern Width

CW：590, 620, 790

Pattern Pitch

CP：360

Belt Width

BW：650-1400mm

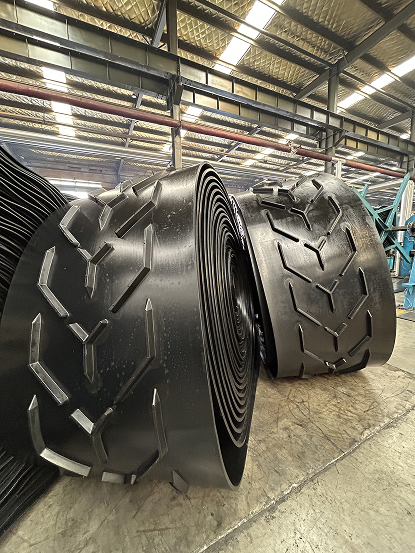

Pattern Type 12 Detail

Pattern Height

CH：14

Pattern Width

CW：500, 600, 640, 800, 1010

Pattern Pitch

CP：200, 230, 250, 300, 305

Belt Width

BW：600-1200mm

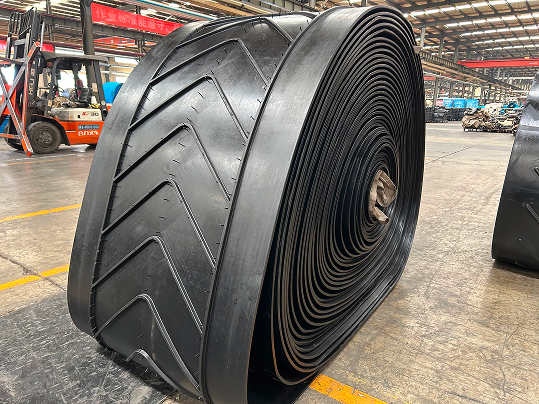

Pattern Type 13

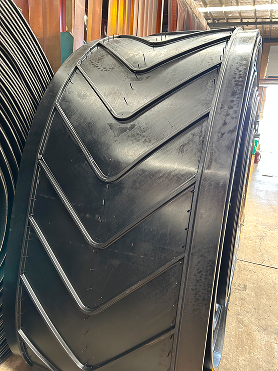

Pattern Type 13 Detail

Pattern Height

CH：14

Pattern Width

CW：500, 600, 640, 800, 1010

Pattern Pitch

CP：200, 230, 250, 300, 305

Belt Width

BW：600-1200mm

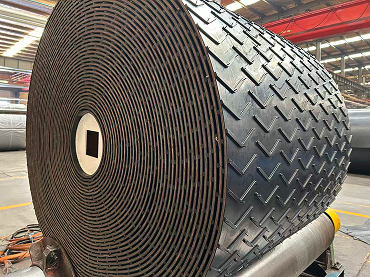

Pattern Type 14

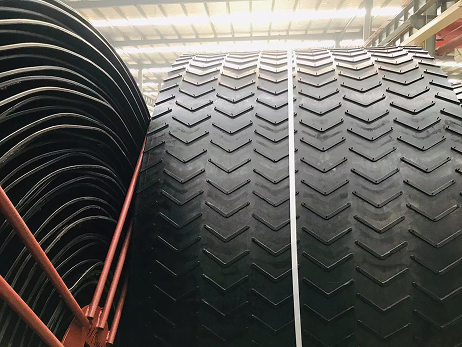

Pattern Type 14 Detail

Pattern Type 15

Pattern Height

CH：25

Pattern Width

CW：750

Pattern Pitch

CP：340

Belt Width

BW：900-1400mm

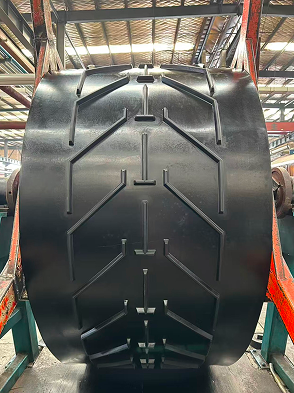

Pattern Type 15 Detail

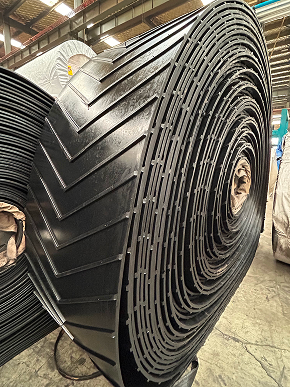

Pattern Type 16

Pattern Height

CH：10

Pattern Width

CW：300-1200

Pattern Pitch

CP：85, 100

Belt Width

BW：300-1200mm

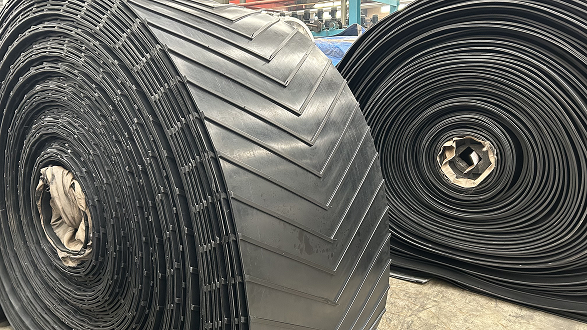

Pattern Type 16 Detail

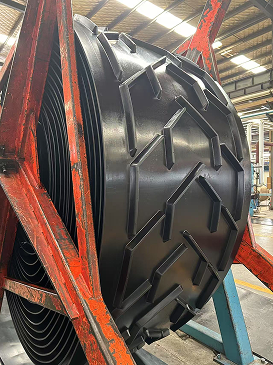

Pattern Type 17

Pattern Height

CH：32

Pattern Width

CW：600, 650, 770, 1020

Pattern Pitch

CP：330

Belt Width

BW：700-1450mm

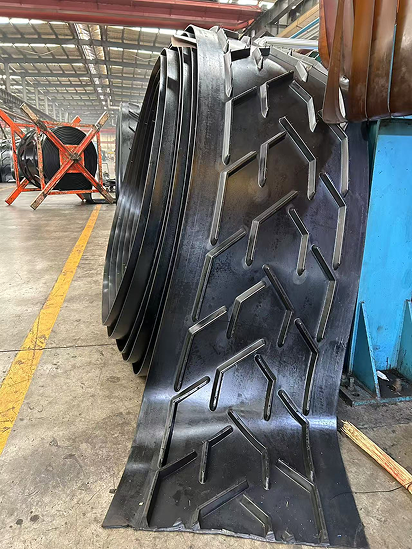

Pattern Type 17 Detail

Pattern Type 18

Pattern Height

CH：32

Pattern Width

CW：445, 595, 795

Pattern Pitch

CP：295, 355, 495

Belt Width

BW：550-1200mm

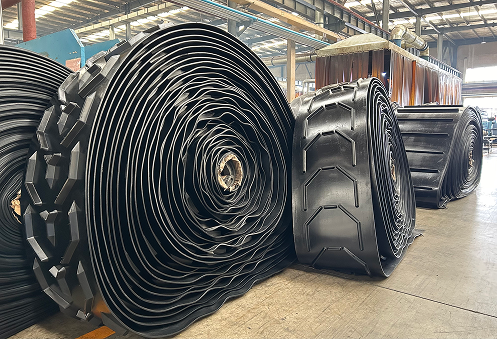

Pattern Type 18 Detail

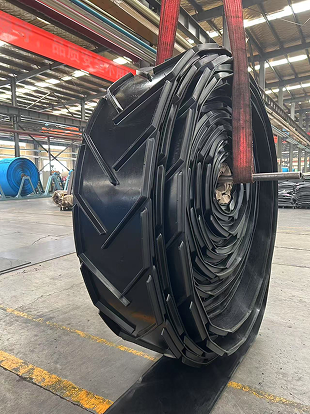

Pattern Type 19

Pattern Height

CH：32

Pattern Width

CW：470

Pattern Pitch

CP：330

Belt Width

BW：500-1000mm

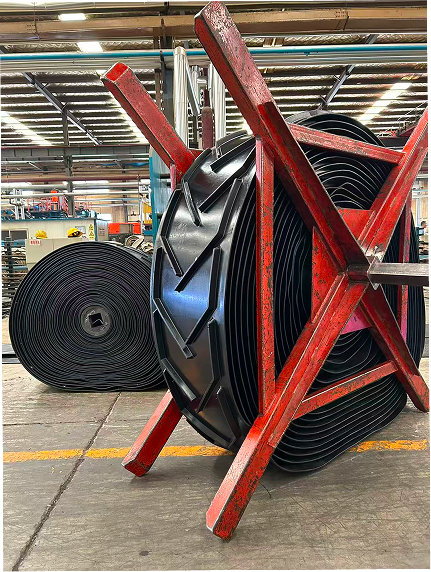

Pattern Type 19 Detail
